Big Bore SAE O-Ring Components
by Frederiks Machine & Tool Co., Inc. • Rosemont, NJMade to order
Availability
Made to Order
Specifications

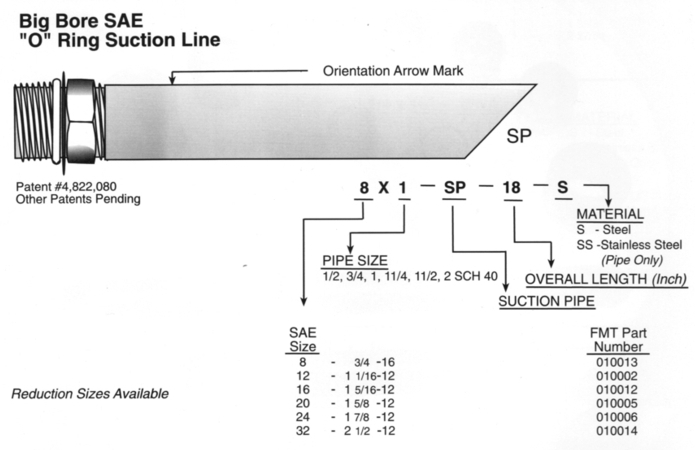

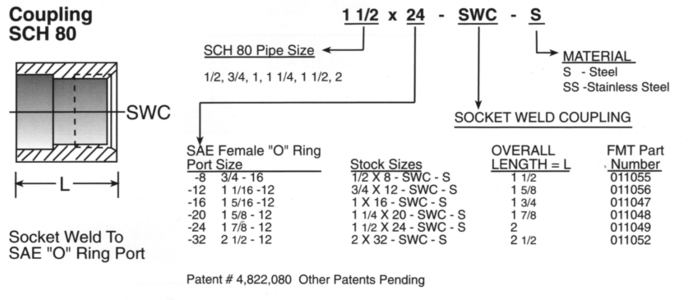

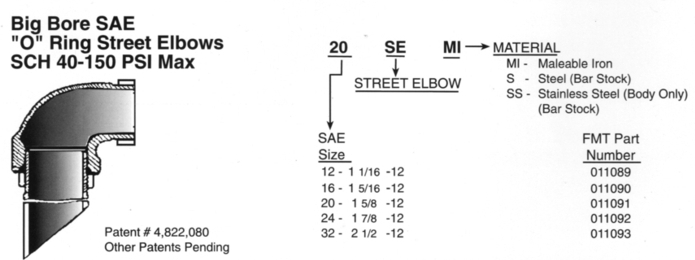

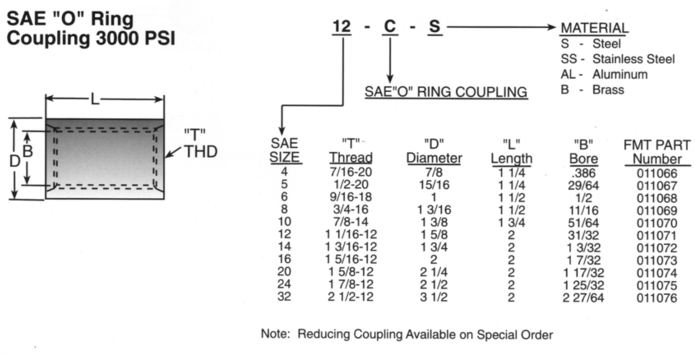

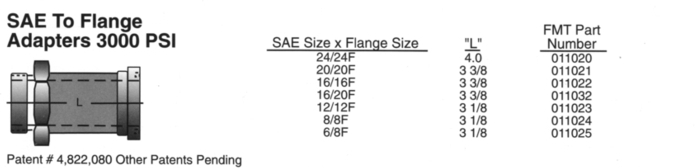

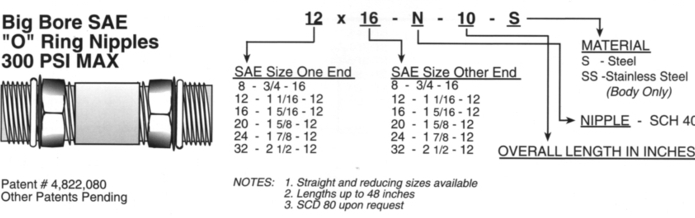

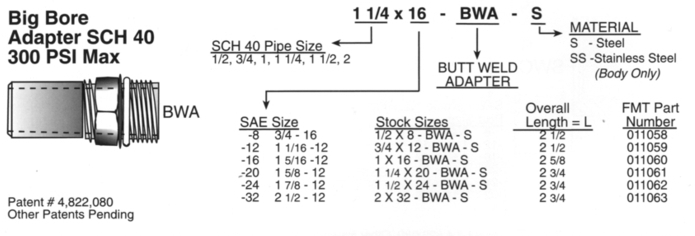

TypesCouplings (Sch 40, Sch 80, 3000 PSI), Adapters (Sch 40, Sch 80), Nipples, Elbows, Suction Lines, Flange Adapters, Half Couplings
MaterialsSteel, Stainless Steel 304, Stainless Steel 316
ProductionIn-stock standard sizes; custom configurations to order — in-house CNC manufacturing, fast turnaround
ApplicationsHydraulic pumps, pneumatic systems, pump repair, legacy equipment, custom manifold connections
CNC Machining
Description

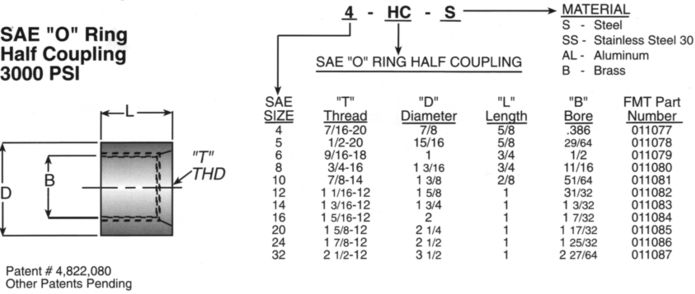

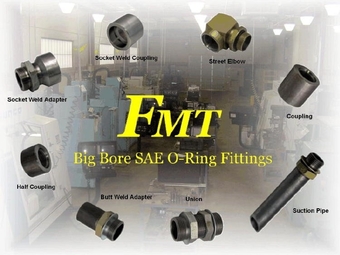

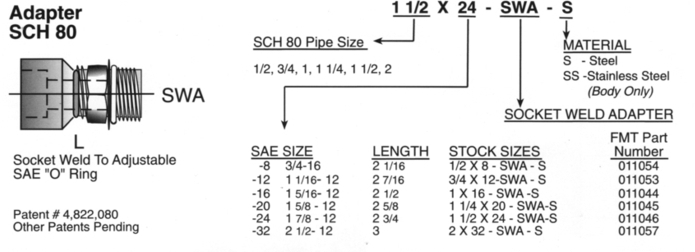

FMT's patented Big Bore SAE O-Ring components are a proprietary product line manufactured entirely in-house — couplings, adapters, nipples, suction pipes, elbows, flange adapters, and half couplings in both steel and stainless steel. Designed for hydraulic and pneumatic pump applications, these fittings have saved customers thousands of dollars on pump repairs. Complete inventory of the most common components is maintained in-stock; custom sizes and configurations available from FMT's on-site CNC facility. Browse the full catalog below.
